Schumacher SE-3612
| SCHUMACHER SE-3612 REPAIR PARTS |
||
| PART NUMBER |
DESCRIPTION | Qty |
| 0090026125 | 115 Volt Power Cord | 1 |
| 0099000062 | Fan Blade | 1 |
| 0099000063 | Fan Motor Open Frame 115 Volt | 1 |
| 0099000080 | Wheel 6" Plastic for 3/8" Axle | 1 |
| 0099000094 | 135 Minute Mechanical with Hold | 1 |
| 0099000096 | Knob for Timer Switches on SE Series Chargers | 1 |
| 0499000050 | 2 Position Rocker Switch 3 Terminal On-On (Used in all 3 Places) | 1 |
| 1199003352 | Metal Foot | 1 |
| 2199700006 | Axle End Cap 0.375" Diameter Axle (Pair) | 1 |
| 2299000649 | Heatsink Rectifier Assembly | 1 |
| 2299001023 | Battery Charger Wheels - Handle Hardware Kit | 1 |
| 2299001542 | 12 Volt DC Fan Speed Controller (Three Wire) | 1 |
| 2299001552 | Heatsink Rectifier Assembly | 1 |
| 2299001651 | Heatsink Rectifier Assembly | 1 |
| 2299002234 | Fan Motor 12 Volt DC Muffin Ultra Quiet | 1 |
| 2299002310 | 12 Volt DC Fan Speed Controller (Two Wire) | 1 |
| 3100100032 | Diode Anode on Lead 90 Amp | 1 |
| 3199100028A | 75 Amp 400 Volt Positive Diode (Set of 4) | 1 |
| 3599000210 | Battery Charger Handle | 1 |
| 3899001964 | Negative Cable & Clamp (Black) | 1 |
| 3899001980 | Positive Cable & Clamp (Red) | 1 |
| 3999000107 | Circuit Breaker 32 Volt DC 90 Amp | 1 |

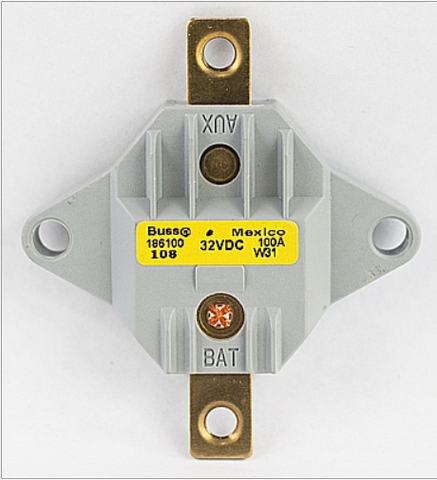

| 3999000108 | Circuit Breaker 32 Volt DC 100 Amp | 1 |
| 4999001229 | Fan Motor 12 Volt DC Muffin Ultra Quiet | 1 |
| 5199000406 | Circuit Breaker Connection Screw | 1 |
| 5399100088 | Ammeter Horizontal 0-200 Amp | 1 |
| 9527T308 | Miniature Lamp 14 Volt 0.08 Amp Wedge Base | 1 |
